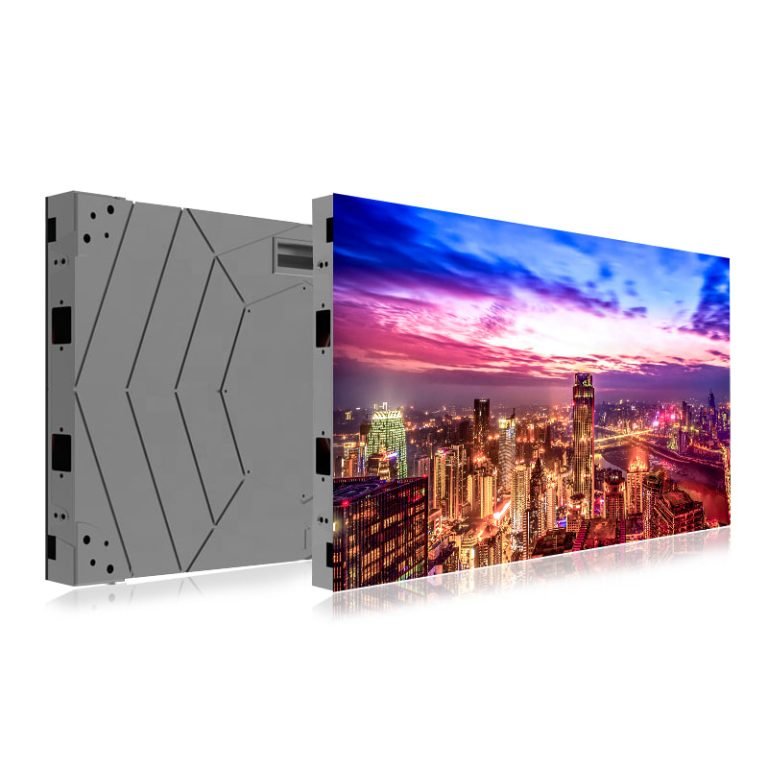

Indoor ultra high definition LED display

1.High definition

2.Seamless splicing

3.High refresh rate (≥3840Hz)

4.Front service

5.Wide viewing angle

6. 16:9 display ratio, 2k/4k/8k available

Model No.	UHD0.9	UHD1.2	UHD1.5	UHD1.8
Pixel Pitch (mm)	0.9375	1.25	1.5625	1.875
LED Type	COB	COB	COB	COB
Module Dimension (W*H) (mm)	150*168.75	150*168.75	150*168.75	150*168.75
Module Resolution (W*H) (Pixel)	160*180	120*135	96*108	80*90
Pixel Density (Pixel/m²)	1137778	640000	409600	284444
Scan Mode (S)	60	60	54	45
Cabinet Dimension (W*H) (mm)	600*337.5	600*337.5	600*337.5	600*337.5
Cabinet Resolution (W*H) (Pixel)	640*360	480*270	384*216	320*180
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight (Kg)	4.5	4.5	4.5	4.5
Best Viewing Distance (m)	0.9	1.2	1.5	1.8
Brightness (Nits)	600-800	600-800	600-800	600-800
Ingress Protection (Front/ Rear)	IP41	IP41	IP41	IP41
Max Power Consumption (W/㎡)	420	420	420	420
Average Power Consumption (W/m²)	120	120	120	120
Refresh Rate (Hz)	3840	3840	3840	3840
Viewing Angle (V/ H)	170°/ 170°	170°/ 170°	170°/ 170°	170°/ 170°
Maintenance Method	Front	Front	Front	Front
Contrast Ratio	10000:1	10000:1	10000:1	10000:1
Grey Level	16bit	16bit	16bit	16bit
Input Power	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz
Operating Temp/ Humidity (℃/ RH)	-20℃-60℃, 10%-85%	-20℃-60℃, 10%-85%	-20℃-60℃, 10%-85%	-20℃-60℃, 10%-85%

Key Specification of Indoor ultra High Definition LED display

Pixel Pitch (mm)	0.9375, 1.25, 1.5625, 1.875
Cabinet Dimension (mm)	600*337.5
Refresh Rate (Hz)	3840
