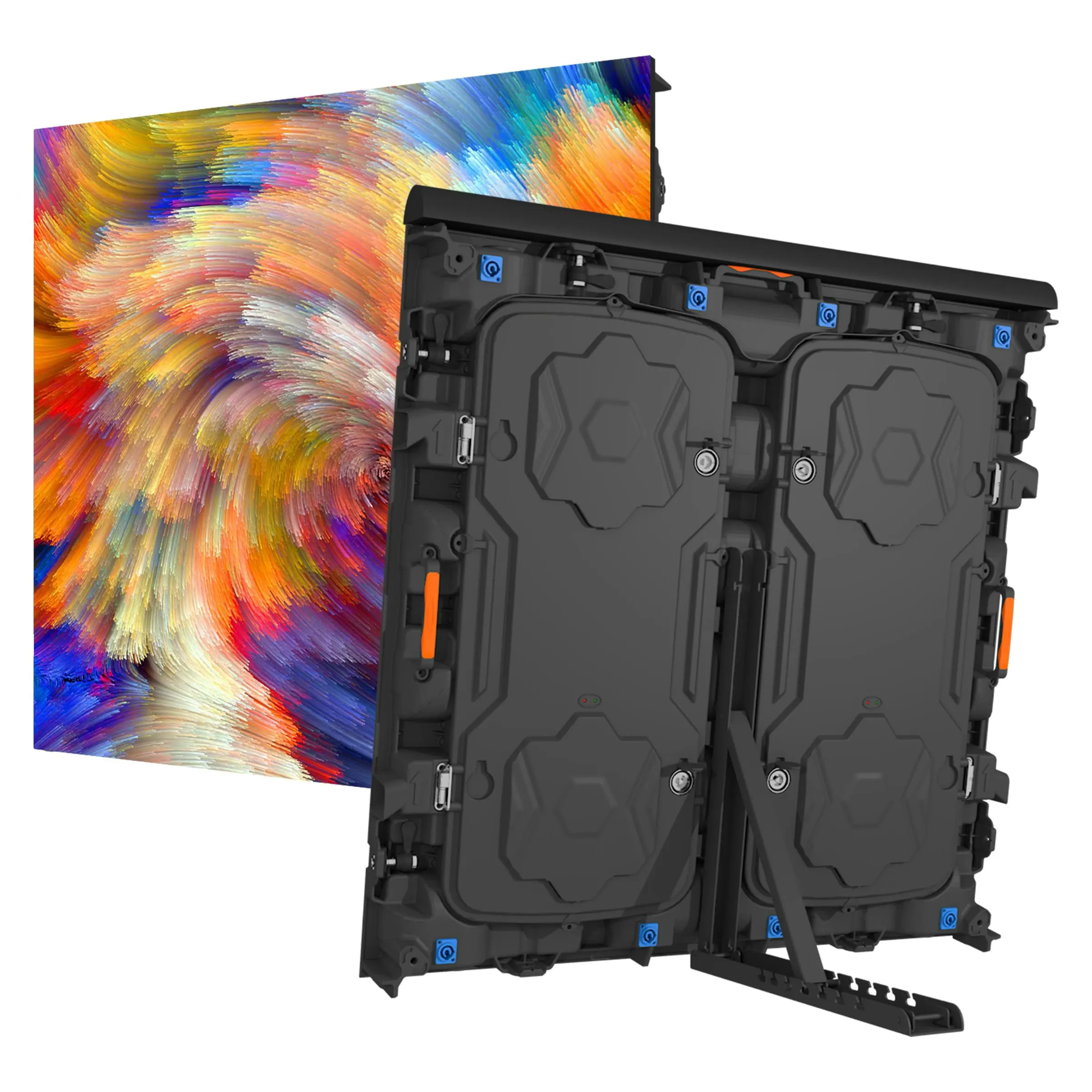

Stadium LED display

1. High refresh rate

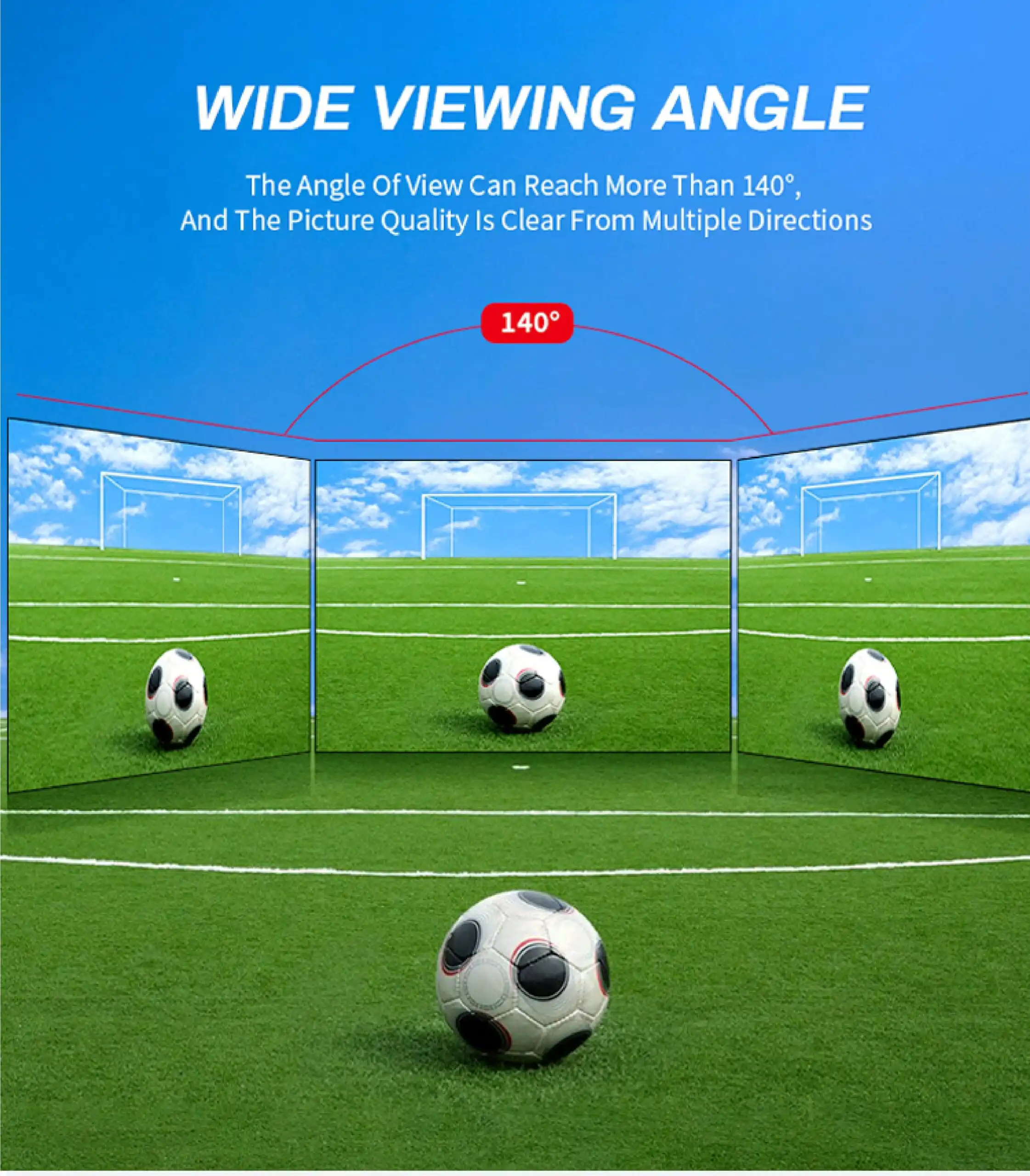

2.Wide viewing angle

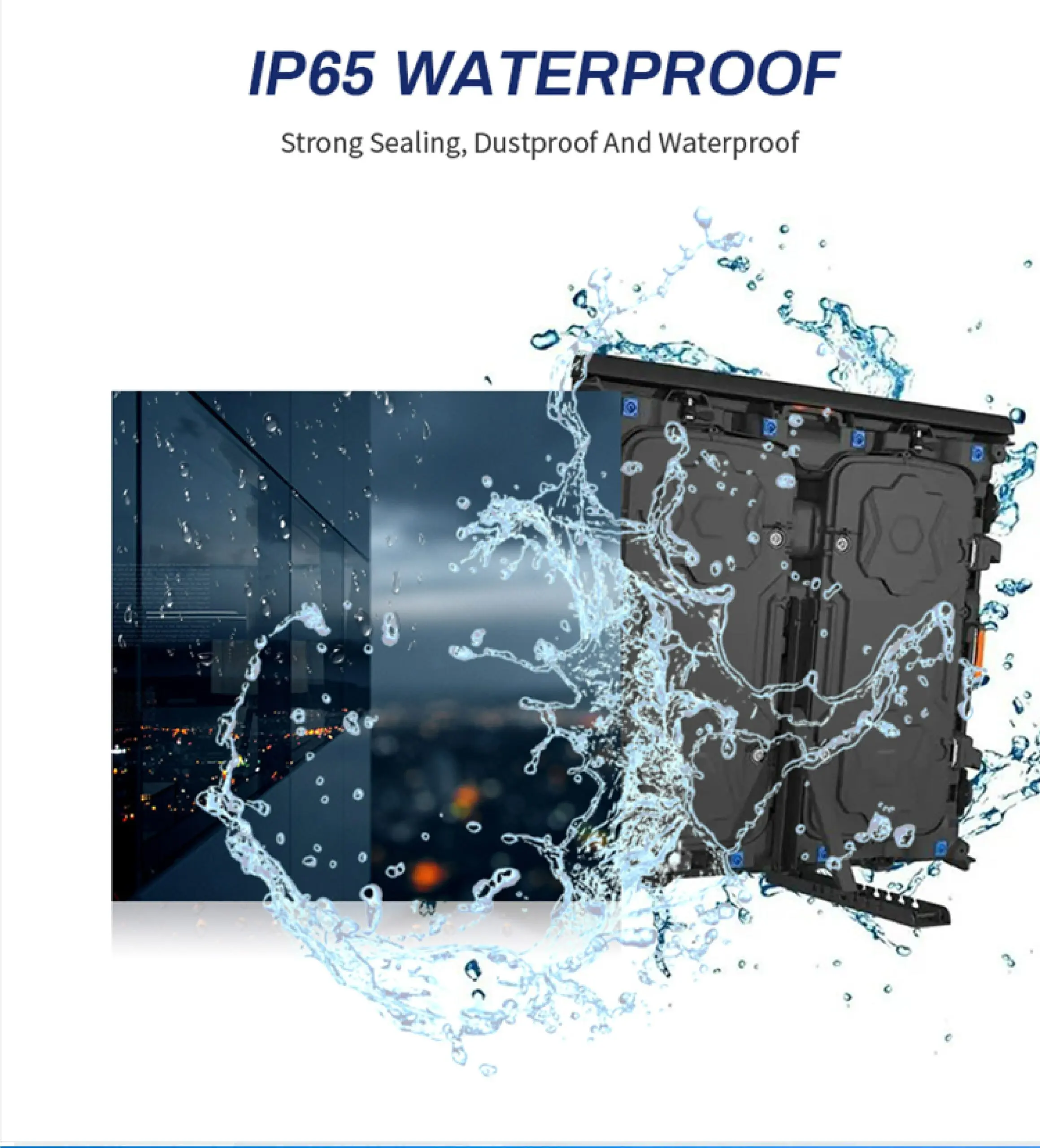

3.Provide more protection

4.Easy to install

Model No.	ST5	ST6	ST8	ST10
Pixel Pitch (mm)	5	6.67	8	10
LED Type	SMD2727	SMD3535	SMD3535	SMD3535

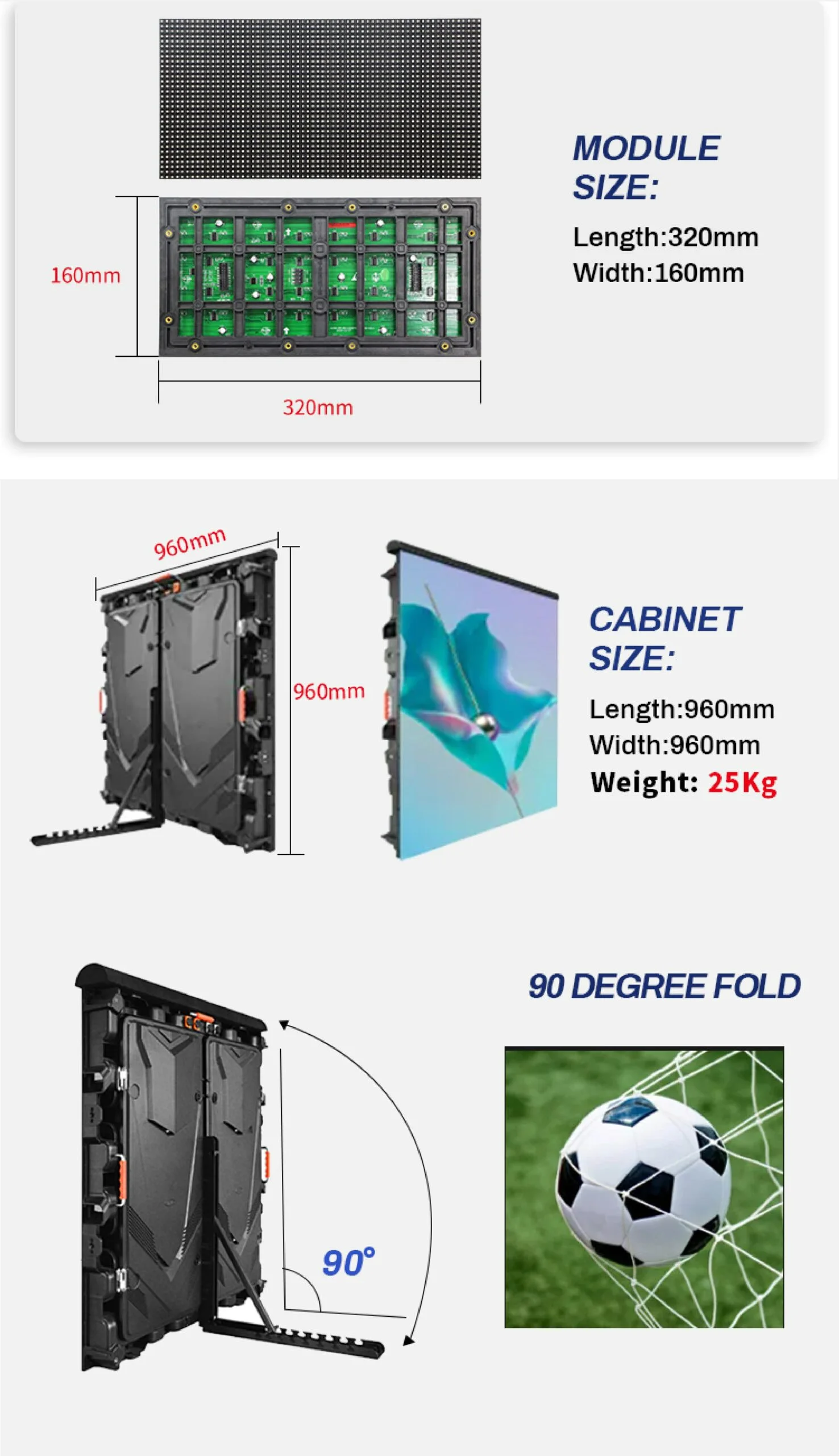

Module Dimension (W*H) (mm)	320*160	320*160	320*160	320*160
Module Resolution (W*H) (Pixel)	64*32	48*24	40*20	32*16
Pixel Density (Pixel/m²)	40000	22500	15625	10000
Cabinet Dimension (W*H) (mm)	960*960	960*960	960*960	960*960
Cabinet Resolution (W*H) (Pixel)	192*192	144*144	120*120	96*96
Cabinet Material	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy	Magnesium Alloy
Cabinet Weight (Kg)	30	30	30	30
Best Viewing Distance (m)	5	6.6	8	10
Brightness (Nits)	5000-10000	5000-10000	6000-10000	6000-10000
Ingress Protection (Front/ Rear)	IP65	IP65	IP65	IP65
Max Power Consumption (W/㎡)	800	800	800	800
Average Power Consumption (W/m²)	350	350	350	350
Refresh Rate (Hz)	1920-3840	1920-3840	1920-3840	1920-3840
Input Power	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz
Operating Temp/ Humidity (℃/ RH)	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%

Key Specification of Stadium LED display

Pixel Pitch (mm)	5, 6.67, 8, 10
Cabinet Dimension (mm)	960*960
IP Grade	IP65
