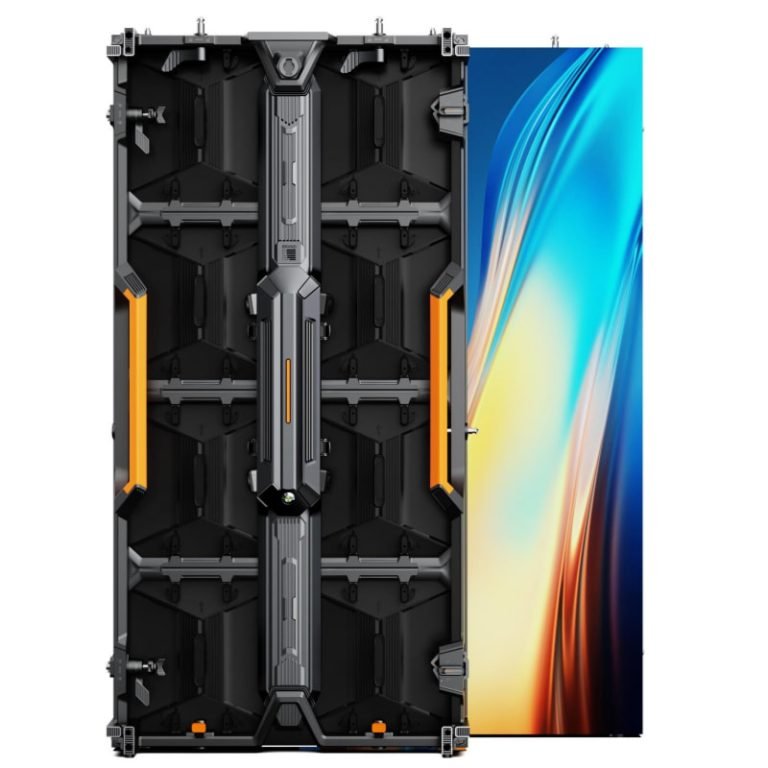

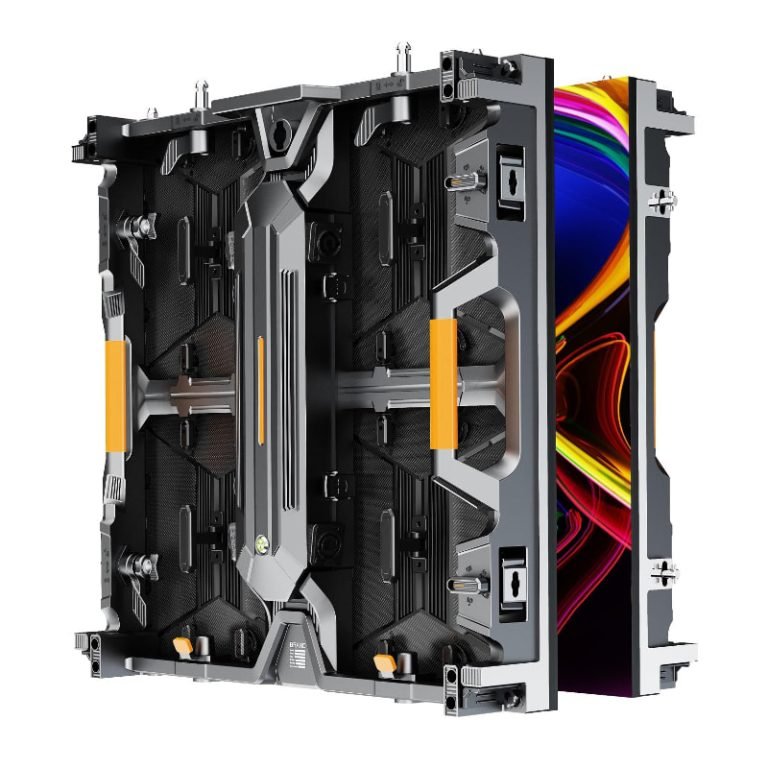

Hub Connection LED Display For Rental
1.Modular Design for rental use
2.Full Front Service
3.Flat and Curved screen
4.Seamless Side Lock,
5. High heat dissipation efficiency,
6. No Fan, No noise.
Specifications of hub connection LED display
| Model No. | R PRO 1.9 Indoor | R PRO 2.6 Indoor | R PRO 2.8 Indoor | R PRO 2.9 Indoor | R PRO 3.9 Indoor | R PRO 2.6 Outdoor | R PRO 2.8 Outdoor | R PRO 3.9 Outdoor |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.953 | 2.604 | 2.84 | 2.976 | 3.91 | 2.604 | 2.84 | 3.91 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1415 | SMD1415 | SMD1921 |
| Module Dimension (W*H) (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Module Resolution (W*H) (Pixel) | 128*128 | 96*96 | 88*88 | 84*84 | 64*64 | 96*96 | 88*88 | 64*64 |
| Pixel Density (Pixel/m²) | 262144 | 147456 | 123904 | 112896 | 65536 | 147456 | 123904 | 65536 |
| Scan Mode (S) | 32 | 32 | 30 | 21 | 16 | 24 | 22 | 16 |
| Cabinet Dimension (W*H) (mm) | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 | 500*500/ 500*1000 |
| Cabinet Resolution (W*H) (Pixel) | 256*256/ 256*512 | 192*192/ 192*384 | 176*176/ 176*352 | 168*168/ 168*336 | 128*128/ 128*256 | 192*192/ 192*384 | 176*176/ 176*352 | 128*128/ 128*256 |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight (Kg) | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 | 6.5/ 13 |
| Best Viewing Distance (m) | 1.9 | 2.6 | 2.8 | 2.9 | 3.9 | 2.6 | 2.8 | 3.9 |
| Brightness (Nits) | 600-1000 | 600-800 | 600-800 | 600-800 | 600-800 | 5000 | 5000 | 5000 |
| Ingress Protection (Front/ Rear) | IP41 | IP41 | IP41 | IP41 | IP41 | IP65 | IP65 | IP65 |
| Max Power Consumption (W/㎡) | 750 | 500 | 500 | 500 | 500 | 650 | 650 | 680 |
| Average Power Consumption (W/m²) | 250 | 200 | 200 | 200 | 200 | 220 | 220 | 220 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Viewing Angle (V/ H) | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Maintenance Method | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear | Front/ Rear |
| Grey Level | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Input Power | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz |
| Operating Temp/ Humidity (℃/ RH) | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% | -20℃-60℃, 10%-85% |
Key Specification of Rental LED Display
|
Pixel Pitch (mm)
|
1.953, 2.604, 2.84, 3.91
|
|---|---|
|
Cabinet Dimension (mm) |
500*500, 500*1000 |
|
Refresh Rate (Hz) |
3840 |
