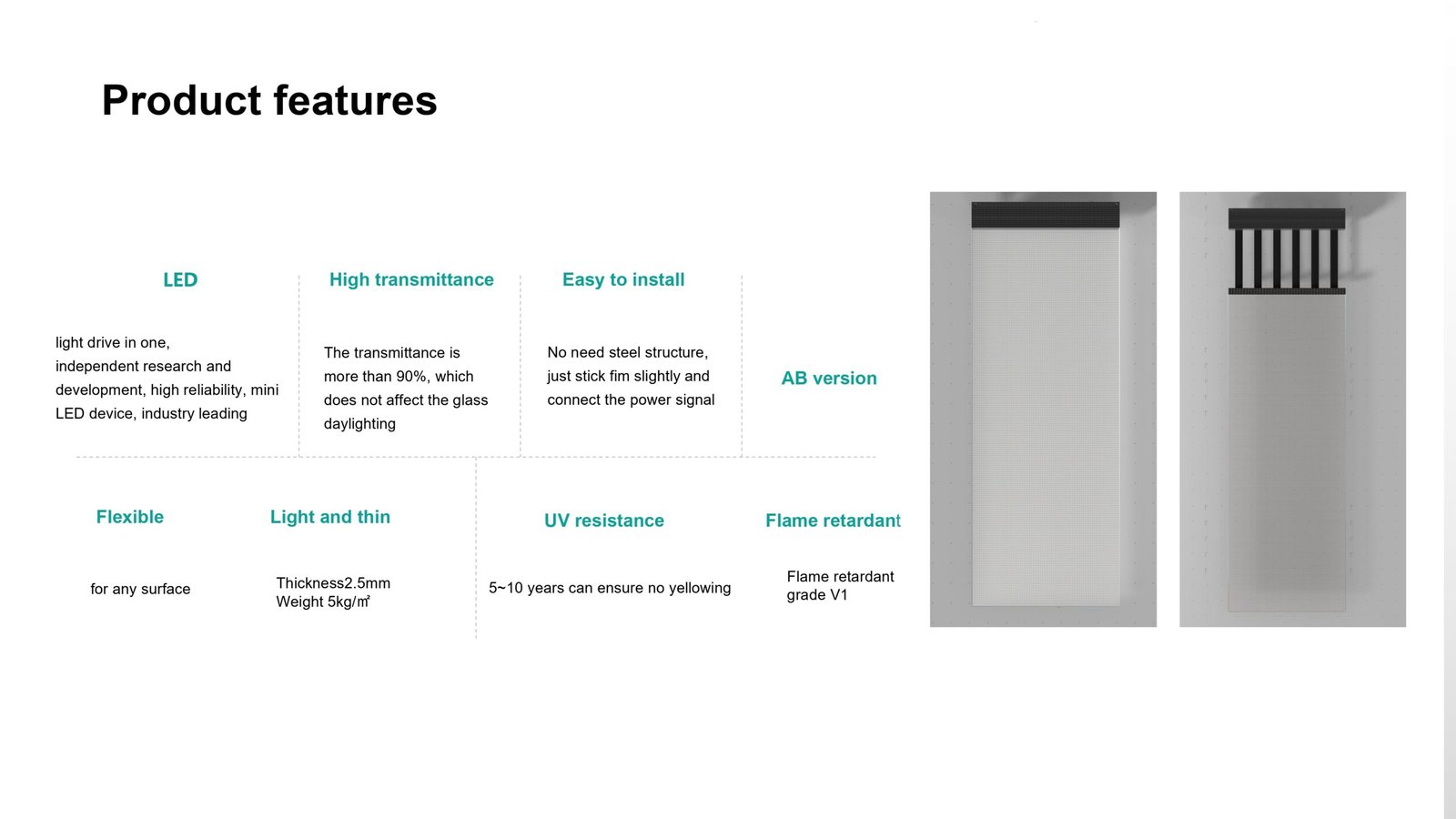

Flexible LED crystal film display

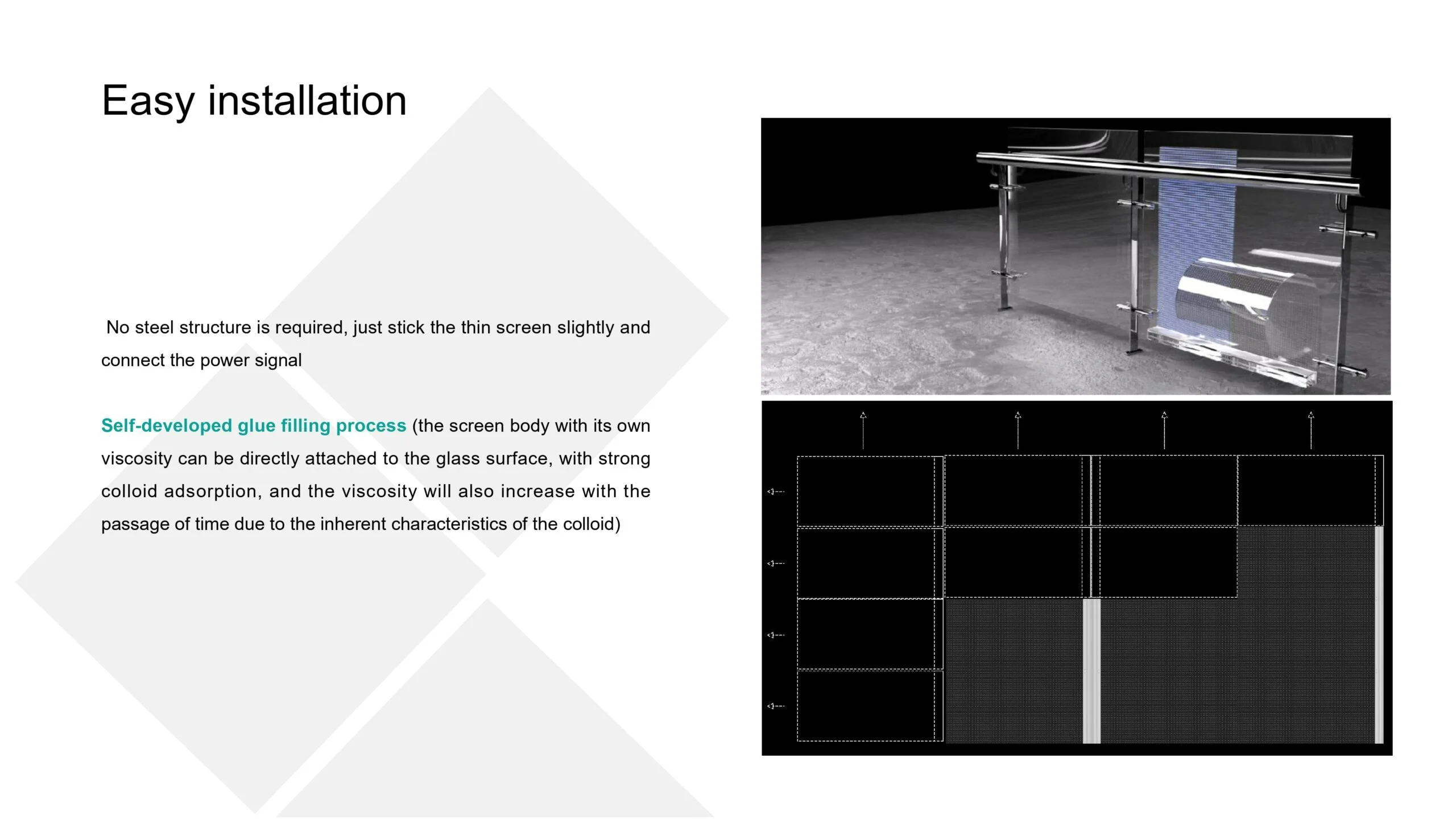

1. Easy installation
2. High transmittance

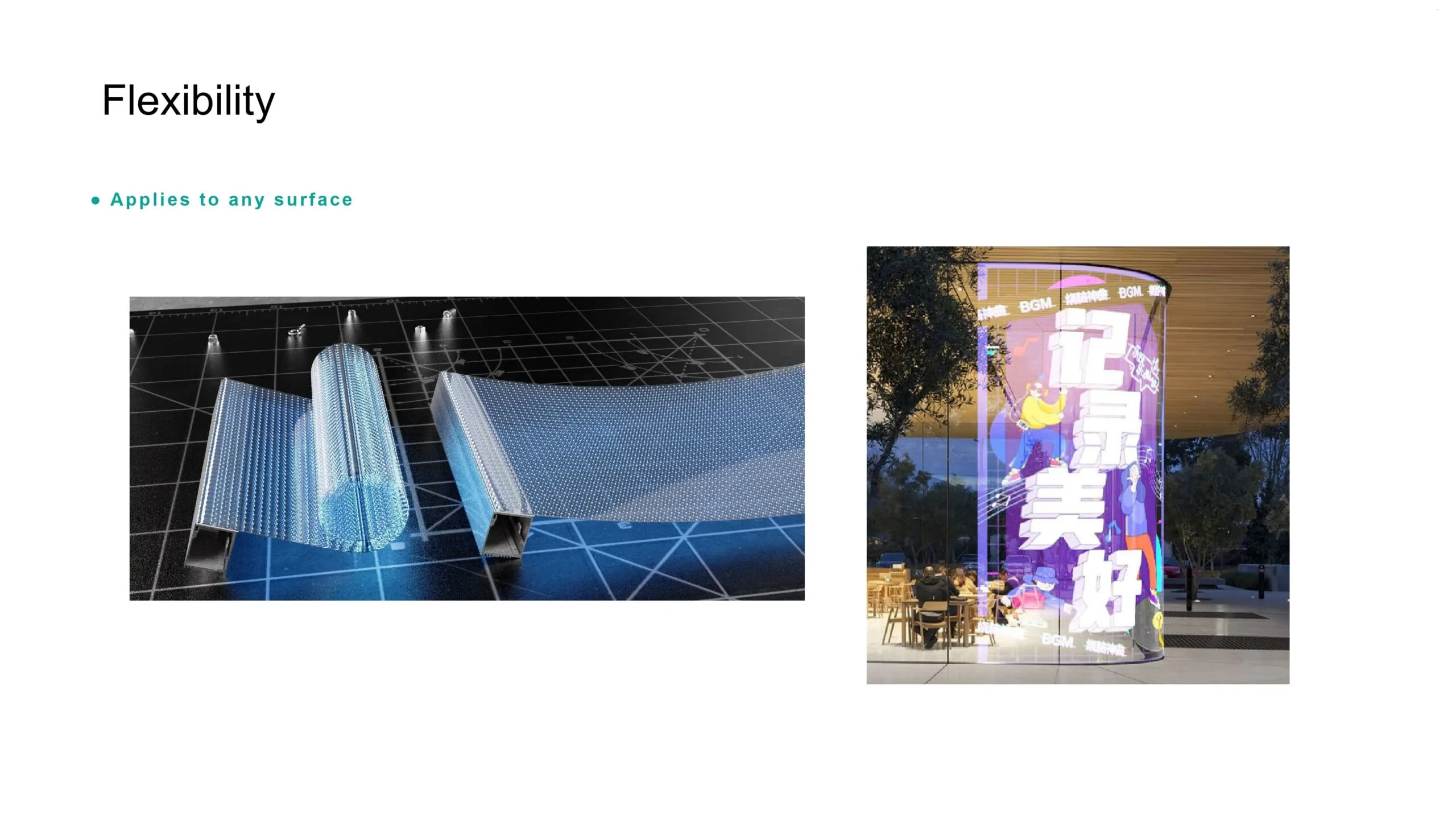

3. Flexibility

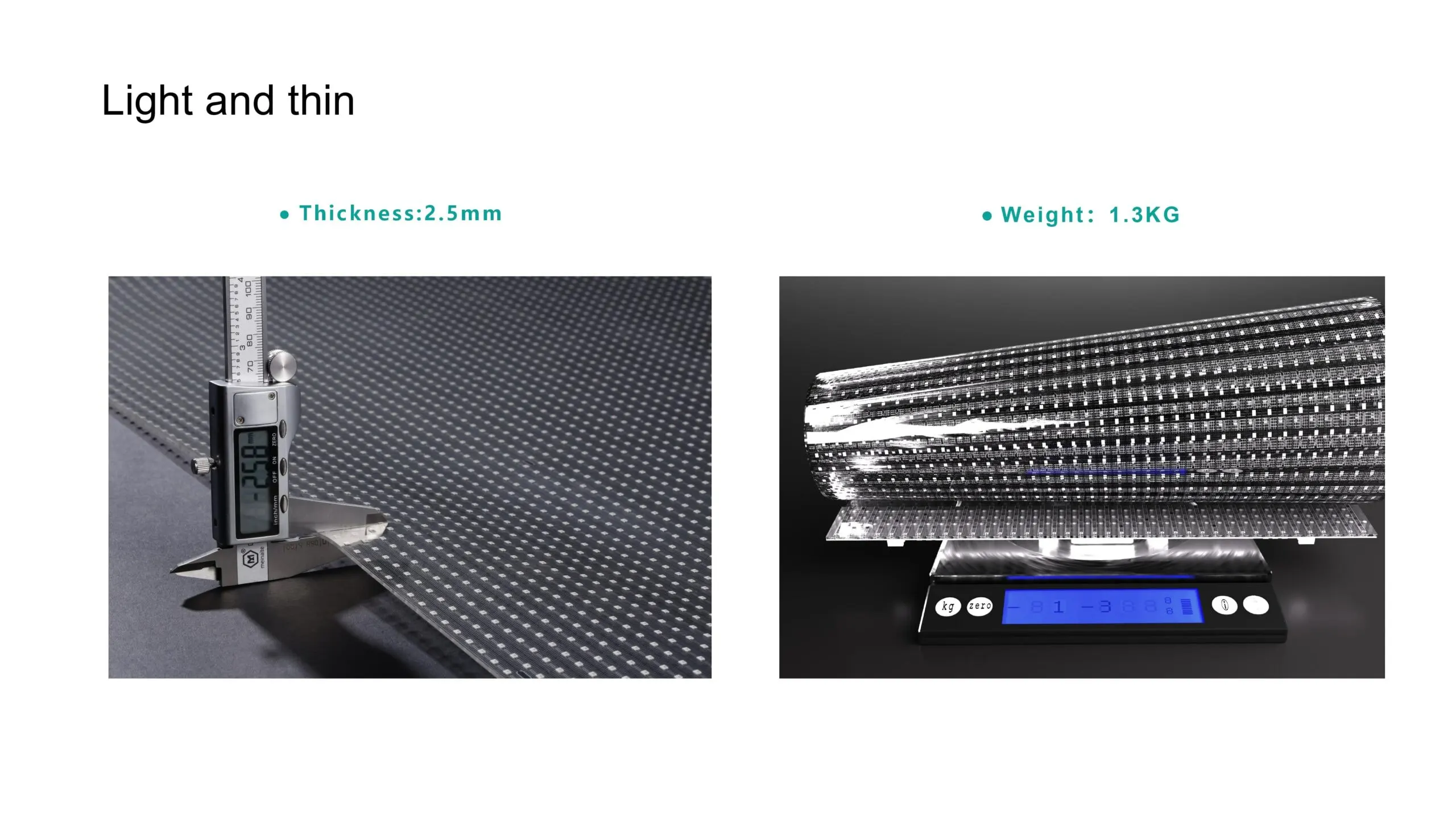

4. Light and thin

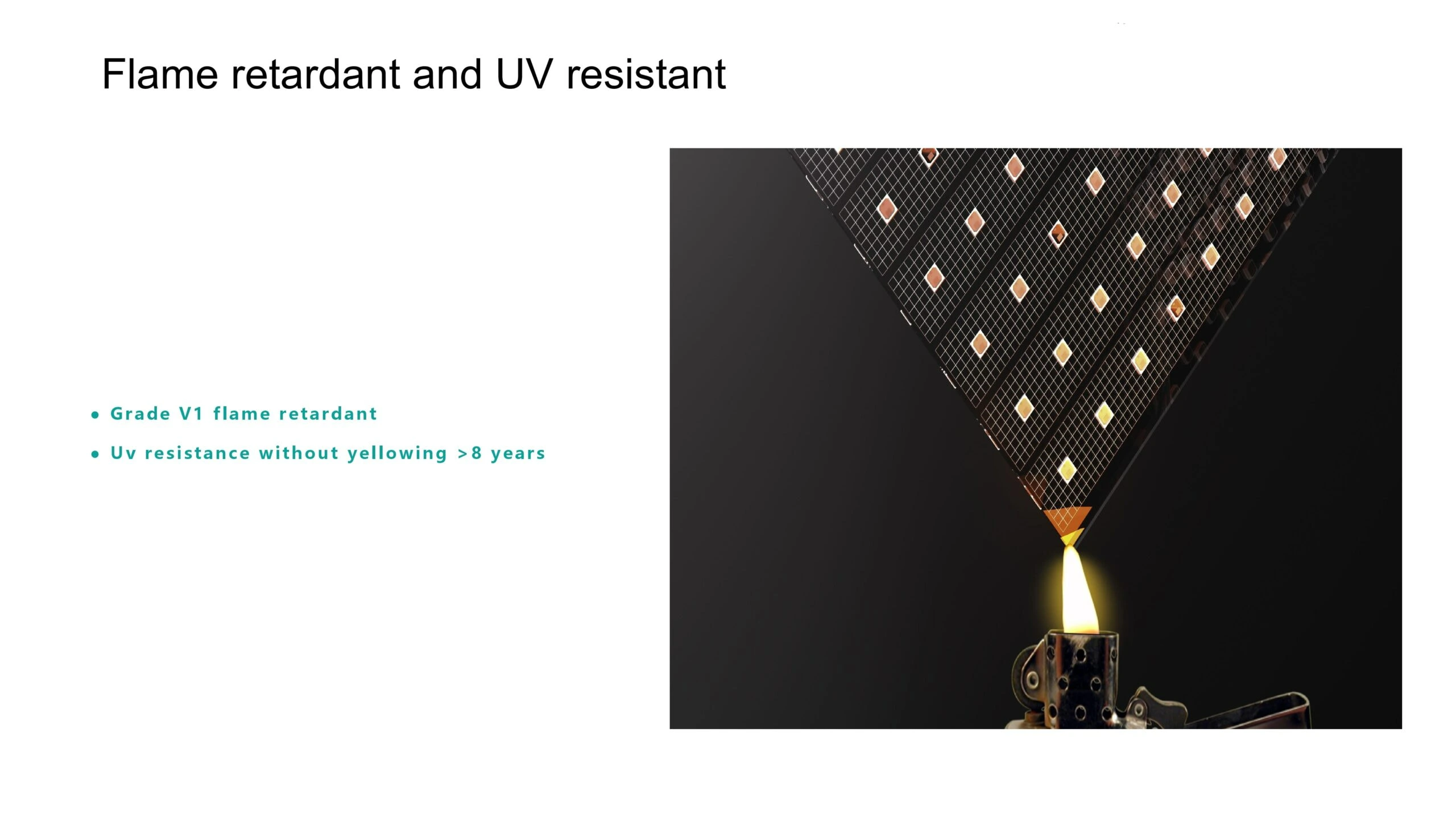

5. Flame retardant and UV resistance
Specifications of Flexible LED Crystal Film Display
|
Model No.
|
FC3
|
FC5
|
FC6
|
FC8
|
FC10
|
Pixel Pitch (mm) |
3.75 |
5 |
6.25*6 |
8.125*8 |
10 |
|---|---|---|---|---|---|
|
Module Dimension (mm) |
540*240 |
512*240 |
1000*240 |
1000*240 |
1000*240 |
|
Module Resolution (px) |
144*64 |
144*48 |
160*40 |
123*30 |
100*24 |
|
Pixel Density (pixels/㎡) |
71111 |
40000 |
26560 |
15375 |
10000 |
|
Brightness (cd/㎡) |
1500-4000 |
1500-4000 |
1500-4000 |
1500-4000 |
1500-4000 |
|
Bending Radius |
Minimum 1m |
Minimum 1m |
Minimum 1m |
Minimum 1m |
Minimum 1m |
|
Contrast Ratio |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
4000:1 |
|
IP Grade |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
Key Specification of Flexible LED Crystal Film Display
|
Pixel Pitch (mm)
|
3.75, 5, 6, 8, 10
|
|---|---|
|
Module Dimension (mm) |
540*240, 512*240, 1000*240 |
|
Brightness (Nits) |
1500-4000 |
|
Transparency |
≥ 70% |
|
Refresh Rate (Hz) |
3840 |
