Outdoor Front Maintenance LED display

1. Front maintenance

2. High brightness

3. Energy saving

4. IP67 waterproof

5. Diecasting aluminum base shell

Model No.	E4	E5	E6	E8	E10
Pixel Pitch (mm)	4.44	5.7	6.67	8	10
LED Type	SMD 1921	SMD 2727	SMD 2727	SMD 2727	SMD 2727

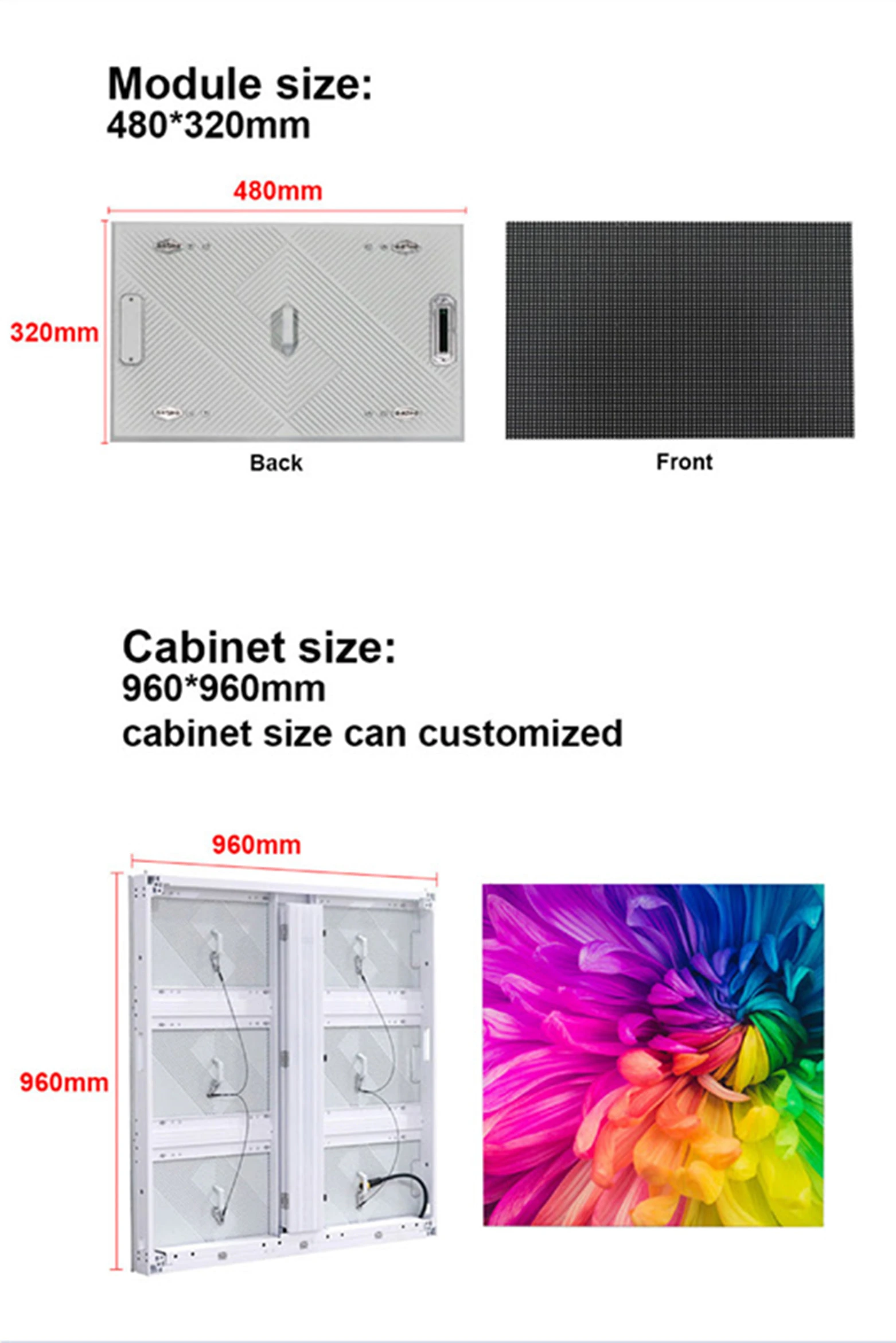

Module Dimension (W*H) (mm)	480*320	480*320	480*320	480*320	480*320
Module Resolution (W*H) (Pixel)	108*72	84*56	72*48	60*40	48*32
Pixel Density (Pixel/m²)	50630	30625	22500	15625	10000

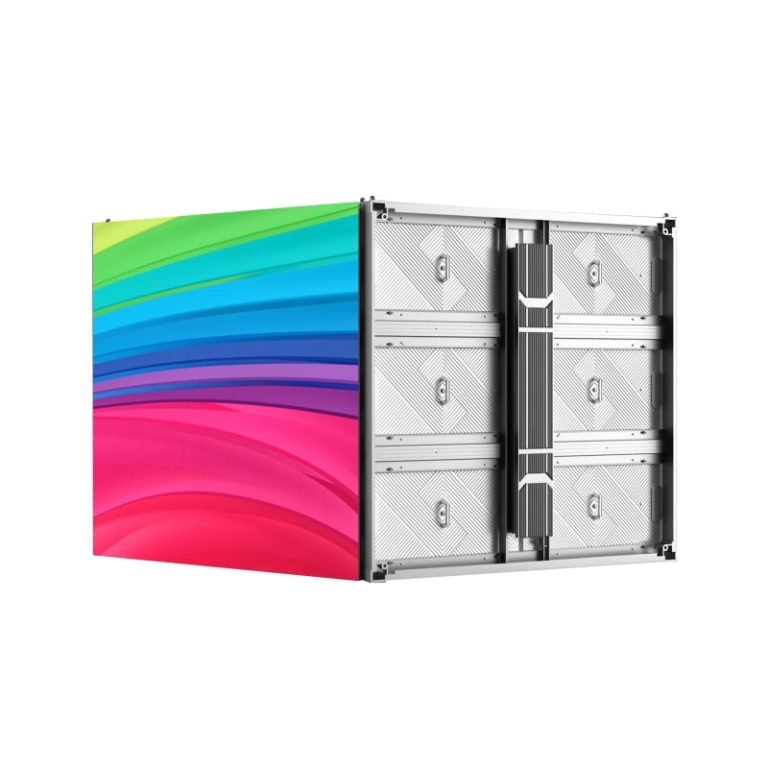

Cabinet Dimension (W*H) (mm)	960*960	960*960	960*960	960*960	960*960
Cabinet Resolution (W*H) (Pixel)	216*216	168*168	144*144	120*120	96*96
Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight (Kg)	25	25	25	25	25
Best Viewing Distance (m)	4.4	5.7	6.6	8	10
Brightness (Nits)	6000-10000	6000-10000	6000-10000	6000-10000	6000-10000
Maintenance Method	Front/ Rear	Front/ Rear	Front/ Rear	Front/ Rear	Front/ Rear
Ingress Protection (Front/ Rear)	IP67	IP67	IP67	IP67	IP67
Max Power Consumption (W/㎡)	650	650	650	650	650
Average Power Consumption (W/m²)	220	220	220	220	220
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Input Power	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz
Operating Temp/ Humidity (℃/ RH)	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%	-30℃-80℃, 10%-90%

Key Specification of Outdoor Front Maintenance LED display
